With the aid of a Radio Communication Controller (RCC), you can realize a very comfortable control post which gives 2 users the ability to operate a maximum of 6 PMR radios.
The user can use the user-friendly controller (with display) to operate the radios in a efficient manner. The push buttons below the radio icons let the user choose a radio to operate. Communication with the radio can be done by using a headset or a table-based mike with speaker,
As always, the hardware and software of the RCC will be adapted to your specific needs, the location where the system will be used and the nature of your activities.

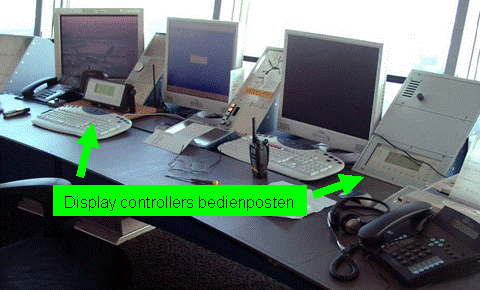

Application example with two control posts:

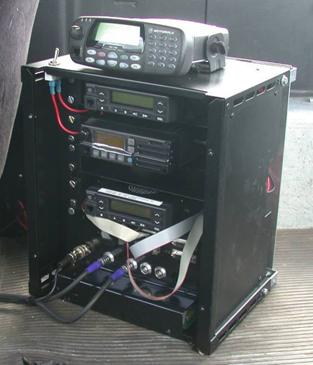

Application example with the RCC master unit in een communication vehicle with 4 radios:
Schematic view of an application example in which 2 control posts remotely operate 4 radios.
The Radio Communication Controller has three functions:
- Monitor:
Listen to all communication on a selected radio channel;
It is possible to monitor multiple channels at the same time. - Select:
Operation of the selected radio channel: for both speaking and listening. By default, you can only speak to one channel at the same time. The user can change a setting to connect channels in parallel. This allows you to operate two or more channels at the same time. - Busy:
Display indication when a channel is busy.
The RCC unit (hardware) consists of:
- A master station (with a maximum of 2 control posts)
- 6 Available radio connections
- 2 Connection panels for 2 control posts

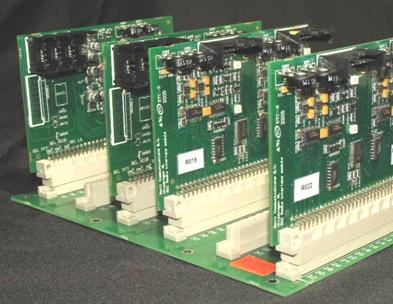

Modular electronics design: the core of the Radio Communication Controller:

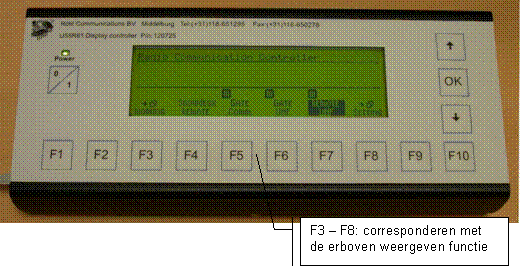

Display controller:

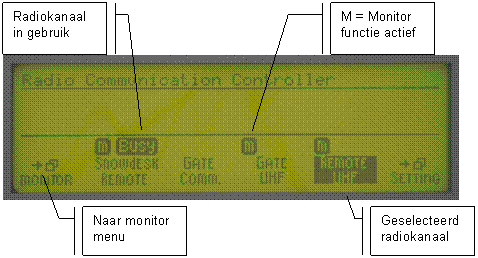

Start screen function & layout:

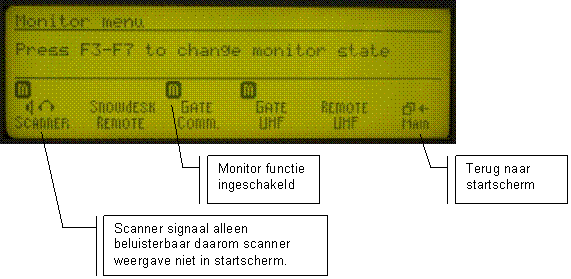

Monitor menu function & layout:

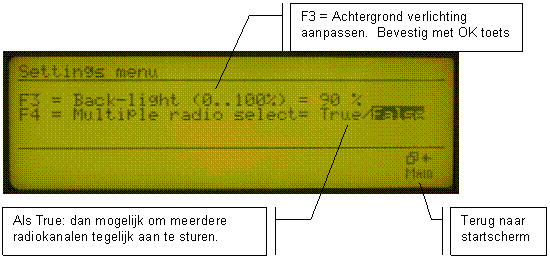

Settings menu function & layout:
